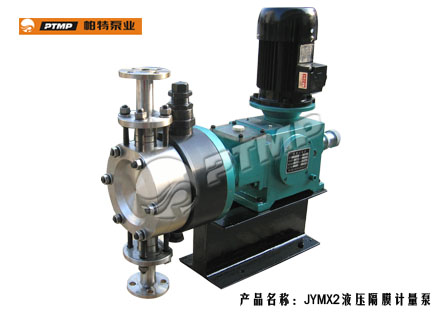

JYMXⅡ series hydraulic diaphragm metering pumps



 product class:Measuring pump series
 product name:JYMXⅡ series hydraulic diaphra....

Performance

 data

  Range of capacity      1.8~1450m³/h
Range of head  ≤133m
Medium temperature  -10℃~120℃
Ambient temperature   Up to 40℃
Maximum working pressure suction pressure+head of pump≤1.6MPa
Motor data

Supporting power


Voltage  380V
Frequency  50HZ
Rotating speed  2900r/min,1450r/min,970r/min
Protection class  IP44/IP54
Insulation class  B/F
Material pump body , pump cover,impeller  cast iron
Pump shaft  45 steel /stainless stell 3Crl3
Mechanical seal  silicon carbide,graphite,tungsten carbide,hard alloy and etc.

  • overview
  • feature
  • purpose
  • Model significance
  • Show case
  • data behavioral
  • Application area

Main Sepcifications
-The capacity of single head up to 300 LPH
-The pressure up to 25 Mpa
-The maximun viscosity is 2000 cp.
-The flow can be adjusted from 0~100% while is running or stopped
-Motor: Standard 220V/50Hz,380V/50Hz
-Control
** Manual adjustment of stroke length
** Stroke actuator (DCK stroke controller)
** Digital controller (JSK series controller)
-Diaphragm rupture detection system is available
-Double or triple heads is available




Model

Capacity
(LPH)

Max.
Pressure
(MPa)

Dia. plunger
(mm)

Stroke
(mm)

Speed
(min-1)

Motor
power (KW)

Weight(KGS)

JYMX1110/25

10

25

10

25

96

0.75

40

JYMX1110/20

10

20

0.55

JYMX1115/20

15

20

12

0.75

45

JYMX1115/16

15

16

0.55

JYMX1120/15

20

15

140

0.75

JYMX1120/12.5

20

12.5

0.55

JYMX1125/10

25

10

16

96

0.75

JYMX1125/8

25

8

0.55

JYMX1140/8

40

8

140

0.75

JYMX1140/6.3

40

6.3

0.55

JYMX1160/5

60

5

20

140

0.75

48

JYMX1160/4

60

4

0.55

JYMX11100/4

100

4

25

0.75

JYMX11100/1.6

100

1.6

0.55

JYMX11110/2.5

110

2.5

32

96

0.75

JYMX11110/1.6

110

1.6

0.55

JYMX11160/2.2

160

2.2

140

0.75

50

JYMX11160/1.6

160

1.6

0.55

JYMX11130/2

130

2

35

96

0.75

JYMX11130/1.3

130

1.3

0.55

JYMX11190/1.6

190

1.6

140

0.75

JYMX11190/1.3

190

1.3

0.55

JYMX11170/1.3

170

1.3

40

96

0.75

JYMX11170/1.3

170

1

0.55

JYMX11250/1.3

250

1.3

140

0.75

JYMX11250/1

250

1

0.55

JYMX11300/0.8

300

0.8

45

0.75

55




Pump head material¡¡







1

2

3

4

5

6

Pump head

SS304

SS316

PVDF

PVC/PP

20# alloy

Hastelloy

Diaphragm

PTFE

PTFE

PTFE

PTFE

PTFE

PTFE

Valves

SS304

SS316

PVDF

PVC/PP

20# alloy

Hastelloy

Valve seats

SS304

SS316

PVDF

PVC/PP

20# alloy

Hastelloy

Valve ball

Ceramic

Ceramic

Ceramic

Ceramic

Ceramic

Ceramic

Valve cap

SS304

SS316

PVDF

PVC/PP

20# alloy

Hastelloy


Special available requirements

Code

BW

W

L

GN

YB

B

D1

D2

XF

Specification

Insulation
type jacket

Heating

Cooling

High
viscosity

Diaphragm
rupture
alarm

Explosion-
proof motor

Stroke
actuator

Digital
controller

Suspension

Features
-Hydraulic actuated diaphragm metering pump, no leakage
-Inner changeable release safety valve and limited auto-compensation valve
-Material of diphragm: PTFE. Metal is available


MOREproducts with related Measuring pump series
